K12 Crash-Rated Bollard
K12 crash-rated hydraulic bollard — anti-ram rated for 40-ton truck impact. 304+201 stainless steel composite tube with 3 guide rods, -35°C to 75°C operating range, IP68 waterproof.
Product Description

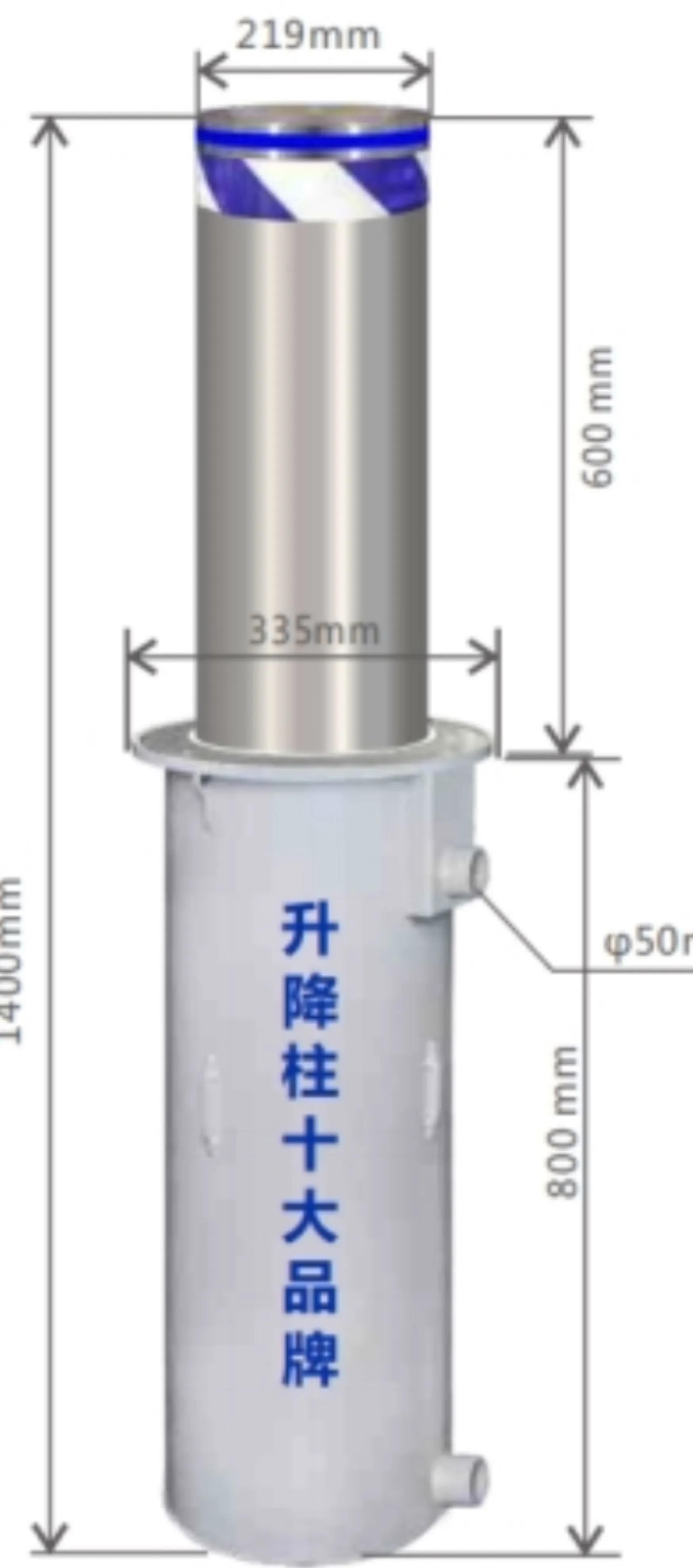

The PM-HLC-S804B is our heavy-duty hydraulic rising bollard, engineered for the most demanding high-traffic environments — logistics hubs, toll stations, and industrial checkpoints. Its electric hydraulic drive system delivers exceptional response speed: raise in ≤4 seconds, lower in ≤2 seconds.
Constructed with a 304+201 stainless steel composite tube (approximately 52 kg), the bollard is reinforced with 3 internal guide rods for superior anti-collision strength and is rated to withstand passage pressure from 40-ton container trucks. The IP68 waterproof and dustproof design, combined with an extreme operating temperature range of -35°C to 75°C, ensures reliable performance in the harshest climates.
A bottom drainage design (≥φ50mm) prevents water accumulation. Safety features include emergency stop and power-failure emergency lowering. This product is designed and manufactured by our company.
Key Features
- K12 (ASTM F2656 M50) crash rating — stops 6.8-ton truck at 80 km/h
- Anti-ram design for government, embassy and critical infrastructure perimeters
- Electric hydraulic system control — fast response
- 304+201 stainless steel composite tube body
- IP68 waterproof and dustproof
- Rated for 40-ton container truck passage pressure
- 3 guide rods for anti-collision reinforcement
- Emergency stop + power-failure emergency lowering
- Wide temperature operation: -35°C to 75°C
- Bottom drainage design (≥φ50mm)
Technical Specifications
| Model | PM-HLC-S804B |
| Drive System | Electric Hydraulic Drive |
| Material | 304 + 201 Stainless Steel Composite Tube |
| Weight | Approx. 52 kg |
| Waterproof Rating | IP68 |
| Anti-Collision Structure | 3 Internal Guide Rods |
| Load Capacity | 40-Ton Container Truck Rated |
| Raise Time | ≤4 seconds |
| Lower Time | ≤2 seconds |
| Voltage | 220V AC |
| Operating Temperature | -35°C to 75°C |
| Storage Conditions | -10°C to 65°C (Rain / Moisture / Dust Protected) |
| Drainage Design | Bottom Drainage ≥φ50mm |
| Safety Functions | Emergency Stop + Power-Failure Emergency Lowering |
| Dimensions | Customizable, please confirm with the factory |
Note: Some external dimensions in the original documentation were incomplete. For detailed dimensions, please contact our sales team for confirmation. The above specifications are standard configurations; actual parameters should be confirmed based on site conditions.
Applications
Control System Integration
Control System Integration: Multi-function integrated digital programmable controller. One controller can simultaneously control 1–8 bollards with group control capability. The mainboard reserves interfaces for card readers and ground-loop detection signals, compatible with various gate-opening signals. Operating voltage: 220V, control voltage: 24V, installed separately from the bollard body. Optional features: RFID radio-frequency identification, License Plate Recognition (LPR), remote control, mobile app control, centralized management platform, UPS emergency power supply.
Certifications
K12 Crash-Rated Bollard FAQ
Quick answers to common questions about our bollard products.
How many bollards can one controller manage?
The multi-function integrated digital controller can simultaneously control 1–8 bollards with group control capability, making it suitable for both single-lane and multi-lane installations. For more than 8 bollards, our multi-channel intelligent control system supports 18+ bollards.
Can the PM-HLC-S804B operate in extreme cold or heat?
Yes. The PM-HLC-S804B has a certified operating temperature range of -35°C to 75°C, with storage protection against rain, moisture, and dust from -10°C to 65°C. The bottom drainage design prevents water accumulation and ice formation inside the housing.
Factory-Direct Bollard Manufacturer & Supplier
As a factory-direct bollard manufacturer and supplier since 2013, Guardix provides OEM/ODM production, custom dimensions and finishes, bulk order support and full engineering services. Partner with a certified bollard manufacturer for your next project — view our manufacturer profile or request a quote today.
