Automatic electro-hydraulic retractable bollards with remote control, IP68 waterproofing and 304 stainless steel construction. Ideal for high-security perimeters, government buildings, airports and school entrances.
Standard electro-hydraulic automatic rising bollard. 304 stainless steel, 219mm diameter, 600mm lift height, IP68 waterproof. Ideal for schools, government compounds, airports, and commercial plazas.
View DetailsRelated reading: Hydraulic vs Electro-mechanical vs Pneumatic Bollards
Fully-sealed automatic rising bollard with complete internal component isolation. Same robust build as YC-01. Ideal for humid, rainy, and coastal environments.
View Details
K12 crash-rated hydraulic bollard — anti-ram rated for 40-ton truck impact. 304+201 stainless steel composite tube with 3 guide rods, -35°C to 75°C operating range, IP68 waterproof.
View Details
Key-lockable removable bollard with shallow ground socket installation. 304 stainless steel, IP68 rated. Ideal for temporary access and flexible traffic management.
View Details
Shallow-mount rising bollard designed for sites with underground utilities or limited excavation capacity. Reduced embedment depth lowers installation costs.
View Details
Standard electro-hydraulic automatic rising bollard. 304 stainless steel, 219mm diameter, 600mm lift height, IP68 waterproof. Ideal for schools, government compounds, airports, and commercial plazas.
The YC-01 is our flagship automatic rising bollard, engineered with an integrated electro-hydraulic drive system for reliable, fast operation (3–5 seconds raise/lower). The 304 stainless steel column body features a 6mm wall thickness and a 10mm reinforced flange plate, delivering robust perimeter protection for high-traffic security checkpoints.
Equipped with 3M reflective warning bands and LED beacon lights for high visibility day and night. The IP68 fully-sealed waterproof design ensures uninterrupted performance even in flooded conditions. Remote control, mobile phone app, and control-box integration are all supported. An emergency backup power lowering function guarantees safe operation during power outages.
This product is designed and manufactured by our company, with all parameters verified for quality assurance.

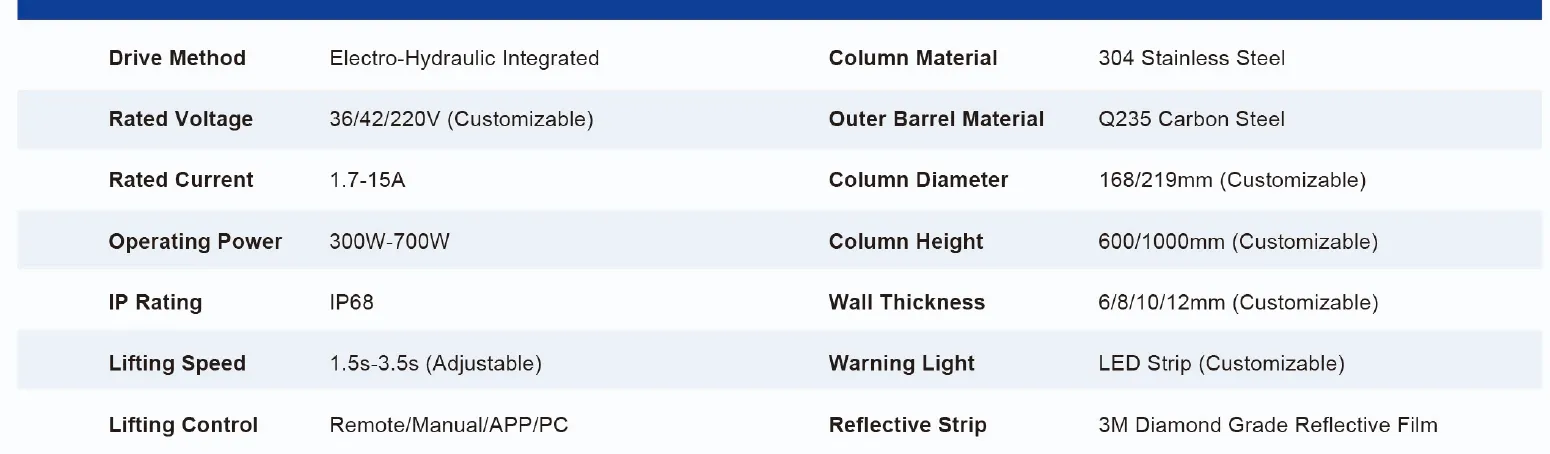

| Model | YC-01 |
| Column Diameter | 219mm (customizable) |
| Lift Height | 600mm (customizable) |
| Embedded Depth | 1100mm |
| Column Wall Thickness | 6mm ±0.5mm |
| Flange Thickness | 10mm |
| Flange Diameter | 360mm |
| Material | 304 Stainless Steel |
| Surface Finish | Polished / Brushed |
| Warning System | 3M Reflective Tape + LED Warning Light |
| Raise / Lower Time | 3–5 seconds |
| Waterproof Rating | IP68 |
| Voltage | 220V AC |
| Motor Power | 350W |
Note: The above specifications are standard configurations. Actual project parameters (column diameter, lift height, embedment depth, surface finish, etc.) should be confirmed based on site conditions and requirements.
Control System Integration: Multi-function integrated digital programmable controller. One controller can simultaneously control 1–8 bollards with group control capability. The mainboard reserves interfaces for card readers and ground-loop detection signals, compatible with various gate-opening signals. Operating voltage: 220V, control voltage: 24V, installed separately from the bollard body. Optional features: RFID radio-frequency identification, License Plate Recognition (LPR), remote control, mobile app control, centralized management platform, UPS emergency power supply.
Quick answers to common questions about our bollard products.

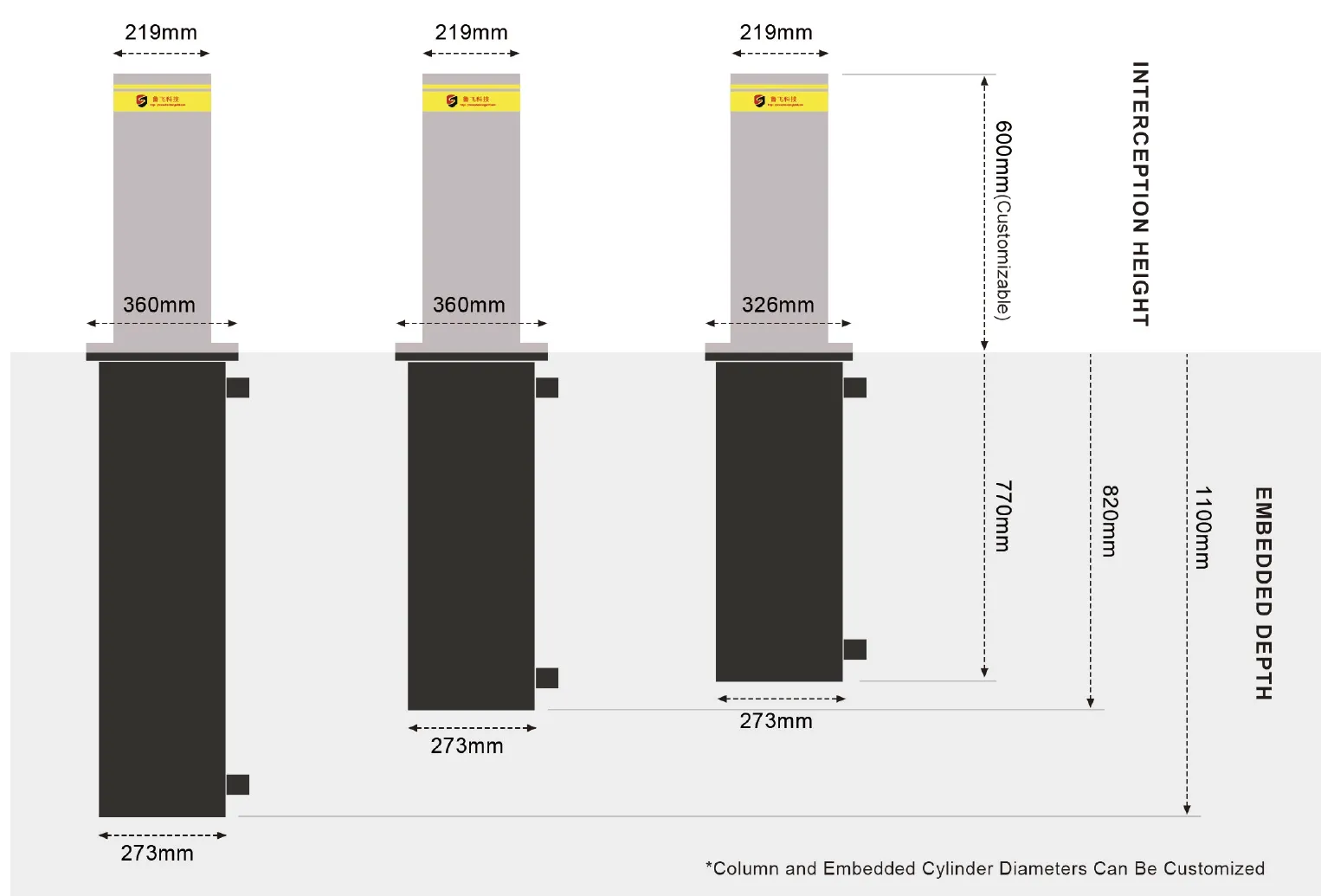

The recommended embedded depth is 1100mm. A concrete foundation of at least 800mm × 800mm × 1200mm is required. Detailed installation drawings are provided with every order.
Yes. The IP68 sealed design prevents water ingress and freezing damage. For extreme cold climates, please contact our technical team for cold-weather configuration recommendations.
Fully-sealed automatic rising bollard with complete internal component isolation. Same robust build as YC-01. Ideal for humid, rainy, and coastal environments.

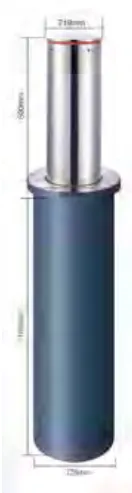

The YC-02 builds on the proven YC-01 platform with a fully-sealed waterproof design that completely isolates all internal electronic components from moisture, dust, and contaminants. This makes it the ideal choice for rainy, humid, and coastal environments where standard bollards may degrade over time.
Sharing the same robust physical specifications (219mm diameter, 600mm lift height, 6mm wall thickness, IP68 rating), the YC-02 adds enhanced sealing gaskets and internal isolation barriers throughout. The electro-hydraulic drive delivers reliable 3–5 second raise/lower performance, while the 304 stainless steel body with 3M reflective bands and LED warning lights ensures high visibility in all conditions.
This product is designed and manufactured by our company. Fully-sealed structural details should be confirmed before official order placement.
| Model | YC-02 |
| Column Diameter | 219mm (customizable) |
| Lift Height | 600mm (customizable) |
| Embedded Depth | 1100mm |
| Column Wall Thickness | 6mm ±0.5mm |
| Flange Thickness | 10mm |
| Flange Diameter | 360mm |
| Material | 304 Stainless Steel |
| Surface Finish | Polished / Brushed |
| Sealing Design | Fully-Sealed — Internal Components Isolated |
| Warning System | 3M Reflective Tape + LED Warning Light |
| Raise / Lower Time | 3–5 seconds |
| Waterproof Rating | IP68 |
| Voltage | 220V AC |
| Motor Power | 350W |
Note: The above specifications are standard configurations. The fully-sealed structural details should be confirmed with our technical team before official order placement. Actual project parameters should be verified based on site conditions.
Control System Integration: Multi-function integrated digital programmable controller. One controller can simultaneously control 1–8 bollards with group control capability. The mainboard reserves interfaces for card readers and ground-loop detection signals, compatible with various gate-opening signals. Operating voltage: 220V, control voltage: 24V, installed separately from the bollard body. Optional features: RFID radio-frequency identification, License Plate Recognition (LPR), remote control, mobile app control, centralized management platform, UPS emergency power supply.
Quick answers to common questions about our bollard products.
The YC-02 fully-sealed design incorporates enhanced sealing gaskets and internal isolation barriers that completely separate electronic components from the external environment. This prevents moisture ingress, condensation damage, and corrosion — making it ideal for rainy, humid, and coastal locations.
Yes. The fully-sealed construction with 304 stainless steel is specifically designed for high-salinity coastal air. The internal isolation barriers provide an additional layer of protection beyond standard IP68 sealing. Please confirm site-specific requirements with our technical team.
Key-lockable removable bollard with shallow ground socket installation. 304 stainless steel, IP68 rated. Ideal for temporary access and flexible traffic management.
The YC-05 movable bollard offers flexible access control for locations where traffic patterns change throughout the day or season. The bollard locks securely into a shallow ground socket (160-300mm depth) and can be removed entirely when vehicle access is required. Constructed from 304 stainless steel with IP68 waterproof rating, it withstands all weather conditions. The key-lockable design prevents unauthorized removal, and multiple bollards can be keyed alike for single-key operation across an entire site.
| Model | YC-05 |
| Column Diameter | 219mm |
| Height | 600mm |
| Socket Depth | 160-300mm |
| Wall Thickness | 6mm ±0.5mm |
| Material | 304 Stainless Steel |
| Waterproof Rating | IP68 |
Note: The above specifications are standard configurations. Actual project parameters (column diameter, lift height, embedment depth, surface finish, etc.) should be confirmed based on site conditions and requirements.
Key-operated removable system — no electrical control required. The bollard locks into a flush ground socket. Multiple bollards can be keyed alike for single-key operation.
Quick answers to common questions about our bollard products.
The YC-05 uses a shallow ground socket with a depth of 160-300mm, making it ideal for sites where deep excavation is not possible. The socket is installed flush with the ground surface for a clean, unobtrusive appearance when the bollard is removed.
Yes. Multiple YC-05 bollards can be keyed alike, allowing single-key operation across your entire site. This is a standard option available upon request. Please specify when ordering.
Shallow-mount rising bollard designed for sites with underground utilities or limited excavation capacity. Reduced embedment depth lowers installation costs.
Our shallow-mount bollard is specifically designed for sites where deep excavation is challenging or impossible due to underground utilities, existing infrastructure, or geological constraints. With a significantly reduced embedment depth compared to standard automatic bollards, it provides reliable rising bollard functionality while minimizing site disruption and installation costs. Suitable for both automatic and semi-automatic configurations depending on project requirements. Ideal for historic districts, urban retrofit projects, and areas with dense underground utilities.
| Embedment Depth | Customizable, please confirm with the factory |
| Column Diameter | Customizable, please confirm with the factory |
| Lift Height | Customizable, please confirm with the factory |
| Material | 304 Stainless Steel |
| Drive Type | Automatic / Semi-Automatic (Configurable) |
| Waterproof Rating | IP68 |
Note: Current documentation is primarily product imagery. Specific dimensions and performance parameters must be supplemented by our technical team. Please contact us for detailed specifications and confirmation.
Control System Integration: Multi-function integrated digital programmable controller. One controller can simultaneously control 1–8 bollards with group control capability. The mainboard reserves interfaces for card readers and ground-loop detection signals, compatible with various gate-opening signals. Operating voltage: 220V, control voltage: 24V, installed separately from the bollard body. Optional features: RFID radio-frequency identification, License Plate Recognition (LPR), remote control, mobile app control, centralized management platform, UPS emergency power supply.
Quick answers to common questions about our bollard products.
The exact embedment depth varies by model and configuration. Generally, shallow-mount bollards require significantly less excavation than standard bollards. Please contact our technical team with your site conditions for exact specifications.
Yes. Shallow-mount bollards can be configured with standard automatic or semi-automatic control systems depending on the specific model. Please consult our technical team to determine the optimal configuration for your project requirements.
As a factory-direct bollard manufacturer and supplier since 2013, Guardix provides OEM/ODM production, custom dimensions and finishes, bulk order support and full engineering services. Partner with a certified bollard manufacturer for your next project — view our manufacturer profile or request a quote today.
