Intelligent Control System
Integrated control solutions for rising bollards. From standard 1-8 channel controllers to multi-channel intelligent systems with remote, mobile, and LPR integration.
Product Description
Our intelligent control systems provide complete centralized management for rising bollard installations of any scale. From the standard 1-8 channel controller for small to medium installations, to the multi-channel intelligent control system supporting 18+ bollards for large-scale sites. Features include RFID card integration, license plate recognition (LPR), remote control, mobile app operation, centralized management platform, and emergency backup power (EPS/UPS). The modular design allows flexible configuration to match any bollard layout and operational requirement.
Key Features
- Multi-channel control (1-8 or 18+ bollards)
- RFID card reader and LPR integration
- Remote control, mobile app, and online management
- EPS/UPS emergency backup power
- Synchronized bollard status monitoring
- Modular design for flexible configuration
Technical Specifications
| Standard Controller Channels | 1–8 Bollards |
| Multi-Channel System Capacity | 18+ Bollards |
| Working Voltage | 220V AC |
| Control Voltage | 24V DC |
| Enclosure Rating | IP65 / IP66 |
| Remote Control Range | ~150m |
| Integration Interfaces | RFID / LPR / Ground Loop / Card Reader |
| Backup Power | EPS / UPS (Optional) |
Note: The above specifications are standard configurations. Actual project parameters (column diameter, lift height, embedment depth, surface finish, etc.) should be confirmed based on site conditions and requirements.
Applications
Control System Integration

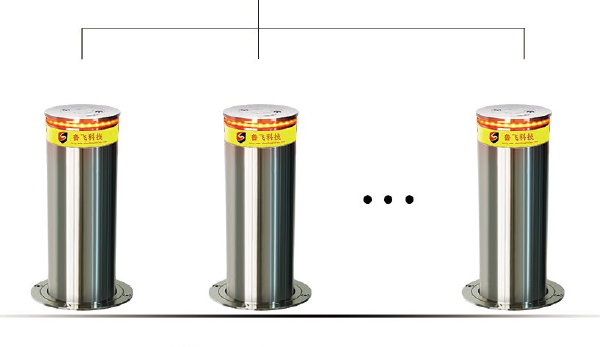

Control System Integration: Multi-function integrated digital programmable controller. One controller can simultaneously control 1–8 bollards with group control capability. The mainboard reserves interfaces for card readers and ground-loop detection signals, compatible with various gate-opening signals. Operating voltage: 220V, control voltage: 24V, installed separately from the bollard body. Optional features: RFID radio-frequency identification, License Plate Recognition (LPR), remote control, mobile app control, centralized management platform, UPS emergency power supply.
Certifications
Intelligent Control System FAQ
Quick answers to common questions about our bollard products.
Can the control system manage bollards of different models simultaneously?
Yes. Our control systems are designed to be compatible with all our bollard models. The modular architecture allows mixed configurations of automatic, semi-automatic, and other bollard types within a single control network.
Does the system support remote monitoring and control?
Yes. Our multi-channel intelligent control system supports remote monitoring via a centralized management platform, as well as mobile app control and traditional remote control. Optional cloud-based management is also available for enterprise-level deployments.
