YC-02 Fully-Sealed Automatic Rising Bollard
Fully-sealed automatic rising bollard with complete internal component isolation. Same robust build as YC-01. Ideal for humid, rainy, and coastal environments.
Product Description
The YC-02 builds on the proven YC-01 platform with a fully-sealed waterproof design that completely isolates all internal electronic components from moisture, dust, and contaminants. This makes it the ideal choice for rainy, humid, and coastal environments where standard bollards may degrade over time.
Sharing the same robust physical specifications (219mm diameter, 600mm lift height, 6mm wall thickness, IP68 rating), the YC-02 adds enhanced sealing gaskets and internal isolation barriers throughout. The electro-hydraulic drive delivers reliable 3–5 second raise/lower performance, while the 304 stainless steel body with 3M reflective bands and LED warning lights ensures high visibility in all conditions.
This product is designed and manufactured by our company. Fully-sealed structural details should be confirmed before official order placement.
Key Features
- Fully-sealed waterproof design — internal electronics fully isolated
- Electro-hydraulic drive system
- 304 stainless steel column body
- 3M reflective warning bands
- Ideal for humid, rainy, and coastal environments
- Internal electronic component isolation protection
- IP68 fully-sealed waterproof rating
- Remote control / mobile phone app control supported
Technical Specifications

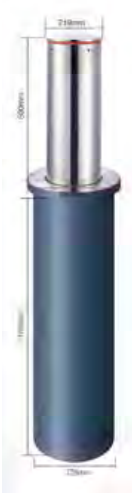

| Column Diameter | 219mm (customizable) |
| Lift Height | 600mm (customizable) |
| Embedded Depth | 1100mm |
| Column Wall Thickness | 6mm ±0.5mm |
| Flange Thickness | 10mm |
| Flange Diameter | 360mm |
| Material | 304 Stainless Steel |
| Surface Finish | Polished / Brushed |
| Sealing Design | Fully-Sealed — Internal Components Isolated |
| Warning System | 3M Reflective Tape + LED Warning Light |
| Raise / Lower Time | 3–5 seconds |
| Waterproof Rating | IP68 |
| Voltage | 220V AC |
| Motor Power | 350W |
Note: The above specifications are standard configurations. The fully-sealed structural details should be confirmed with our technical team before official order placement. Actual project parameters should be verified based on site conditions.
Applications
Control System Integration
Control System Integration: Multi-function integrated digital programmable controller. One controller can simultaneously control 1–8 bollards with group control capability. The mainboard reserves interfaces for card readers and ground-loop detection signals, compatible with various gate-opening signals. Operating voltage: 220V, control voltage: 24V, installed separately from the bollard body. Optional features: RFID radio-frequency identification, License Plate Recognition (LPR), remote control, mobile app control, centralized management platform, UPS emergency power supply.
Certifications
YC-02 Fully-Sealed Automatic Rising Bollard FAQ
Quick answers to common questions about our bollard products.
What makes the fully-sealed design different from standard bollards?
The YC-02 fully-sealed design incorporates enhanced sealing gaskets and internal isolation barriers that completely separate electronic components from the external environment. This prevents moisture ingress, condensation damage, and corrosion — making it ideal for rainy, humid, and coastal locations.
Can the YC-02 operate in extreme coastal environments?
Yes. The fully-sealed construction with 304 stainless steel is specifically designed for high-salinity coastal air. The internal isolation barriers provide an additional layer of protection beyond standard IP68 sealing. Please confirm site-specific requirements with our technical team.
