YC-01 Automatic Rising Bollard
Standard electro-hydraulic automatic rising bollard. 304 stainless steel, 219mm diameter, 600mm lift height, IP68 waterproof. Ideal for schools, government compounds, airports, and commercial plazas.
Product Description
The YC-01 is our flagship automatic rising bollard, engineered with an integrated electro-hydraulic drive system for reliable, fast operation (3–5 seconds raise/lower). The 304 stainless steel column body features a 6mm wall thickness and a 10mm reinforced flange plate, delivering robust perimeter protection for high-traffic security checkpoints.
Equipped with 3M reflective warning bands and LED beacon lights for high visibility day and night. The IP68 fully-sealed waterproof design ensures uninterrupted performance even in flooded conditions. Remote control, mobile phone app, and control-box integration are all supported. An emergency backup power lowering function guarantees safe operation during power outages.
This product is designed and manufactured by our company, with all parameters verified for quality assurance.
Key Features
- Electro-hydraulic drive system — fast and reliable
- 304 stainless steel column body, 6mm wall thickness
- 3M reflective warning bands + LED beacon lights
- IP68 fully-sealed waterproof rating
- Remote control / mobile phone app control
- Emergency backup power lowering function
- Supports control box linkage (card reader, ground loop, LPR)
- 10mm reinforced flange plate, 360mm diameter

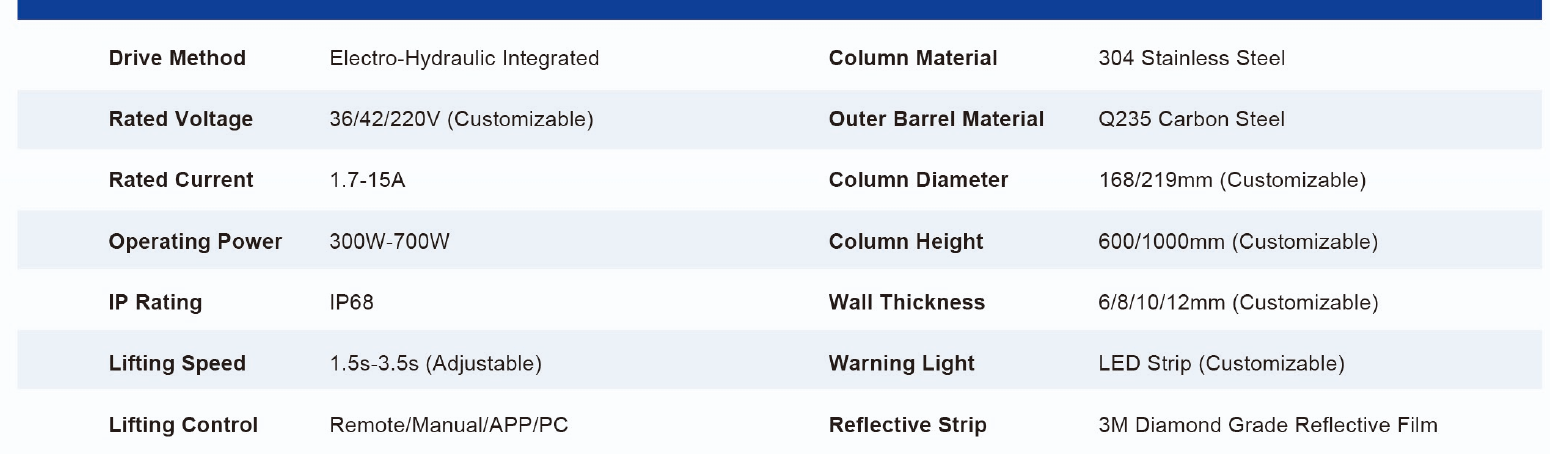

Technical Specifications
| Column Diameter | 219mm (customizable) |
| Lift Height | 600mm (customizable) |

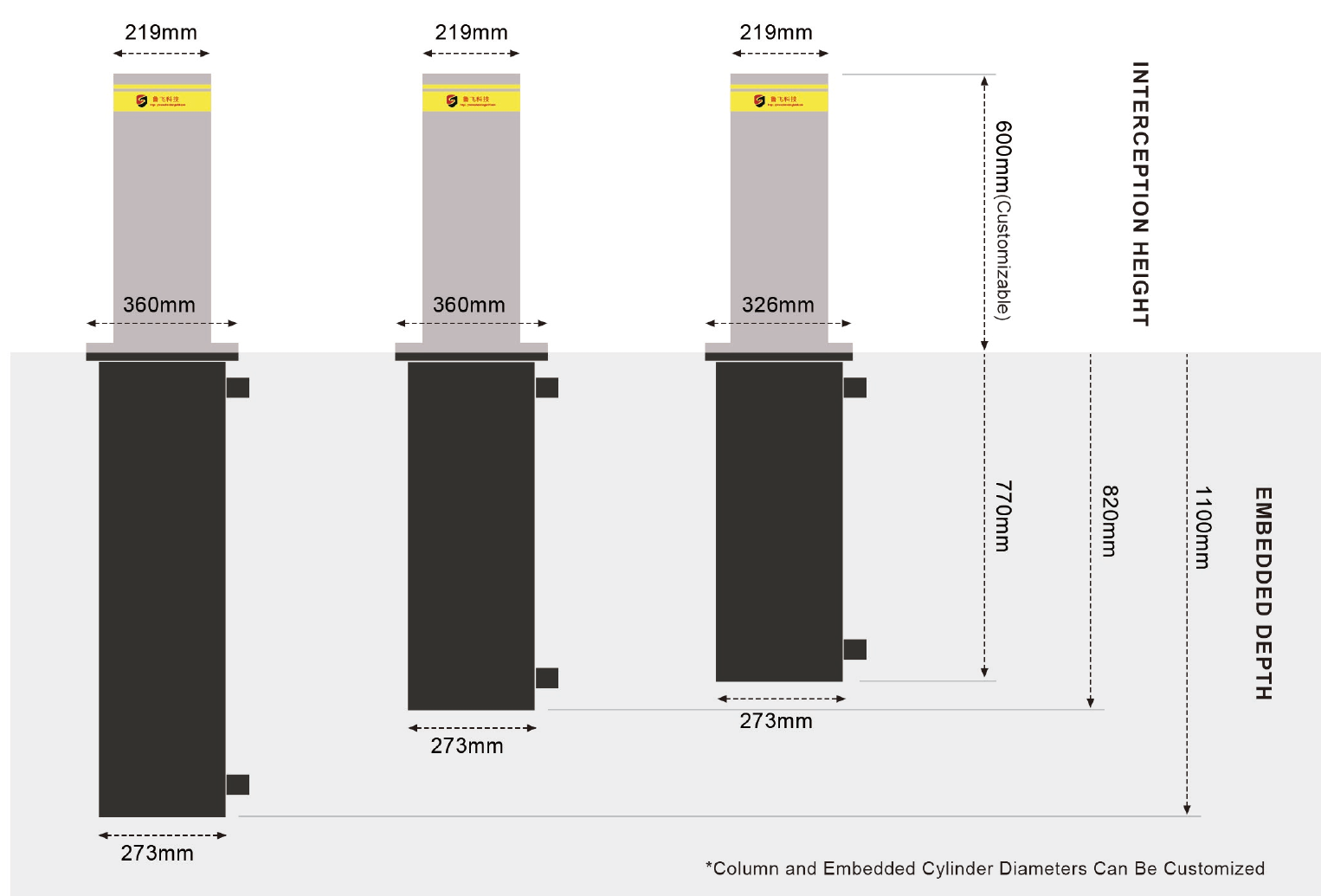

| Embedded Depth | 1100mm |
| Column Wall Thickness | 6mm ±0.5mm |
| Flange Thickness | 10mm |
| Flange Diameter | 360mm |
| Material | 304 Stainless Steel |
| Surface Finish | Polished / Brushed |
| Warning System | 3M Reflective Tape + LED Warning Light |
| Raise / Lower Time | 3–5 seconds |
| Waterproof Rating | IP68 |
| Voltage | 220V AC |
| Motor Power | 350W |
Note: The above specifications are standard configurations. Actual project parameters (column diameter, lift height, embedment depth, surface finish, etc.) should be confirmed based on site conditions and requirements.
Applications
Control System Integration
Control System Integration: Multi-function integrated digital programmable controller. One controller can simultaneously control 1–8 bollards with group control capability. The mainboard reserves interfaces for card readers and ground-loop detection signals, compatible with various gate-opening signals. Operating voltage: 220V, control voltage: 24V, installed separately from the bollard body. Optional features: RFID radio-frequency identification, License Plate Recognition (LPR), remote control, mobile app control, centralized management platform, UPS emergency power supply.
Certifications
YC-01 Automatic Rising Bollard FAQ
Quick answers to common questions about our bollard products.
How deep must the foundation be for the YC-01?
The recommended embedded depth is 1100mm. A concrete foundation of at least 800mm × 800mm × 1200mm is required. Detailed installation drawings are provided with every order.
Can the YC-01 operate in winter or freezing conditions?
Yes. The IP68 sealed design prevents water ingress and freezing damage. For extreme cold climates, please contact our technical team for cold-weather configuration recommendations.
